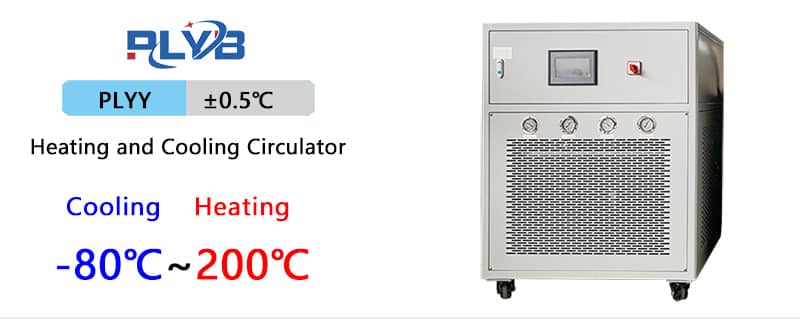

Cryogenic -80°C to 200°C Chiller Heater System
- Product Description
-
Overview of the Cryogenic -80°C to 200°C Chiller Heater System
Product Model: PLYY-80-100
Temperature Control Range: -80-200℃
For use with a 100L jacketed reactor, heating power 7.5KW, cooling power 7.5KW.
The high- and low-temperature cycling unit is also known as a 'high-and-low-temperature integrated machine,' 'cold-and-hot integrated machine,' or 'heating and cooling circulator.'
The ultra-low temperature heating circulation unit is primarily used to provide an ultra-low temperature circulating cooling liquid for the jacket of reaction vessels that require low-temperature reactions, thereby maintaining low-temperature conditions during operation. It can be used in conjunction with double-layer glass reactors of 20L, 50L, 100L, and other capacities, cooling the reaction vessel contents down to -70℃ or -80℃.
● Equipped with microcomputer control and a fully digital Chinese display for convenient operation. The temperature display uses high-brightness LEDs. Features include high- and low-pressure protection, overload protection, and overcurrent protection.
● Environmentally friendly, fluorine-free refrigerant that complies with EU and national standards.
● The refrigeration system components—including the compressor, oil separator, solenoid valve, and expansion valve—are all imported brands.
● The evaporator is a fully brazed plate heat exchanger.
● A specially designed low-temperature circulating pump ensures no leakage or stalling even under low-temperature operating conditions.
● The circulation system adopts a closed-loop design, providing volatile-free protection for experimental personnel’s health.
● The liquid storage tank and the heat-transfer medium are both made of 304 stainless steel, offering excellent corrosion resistance.
● The entire machine is stable and reliable, capable of meeting the demand for process cooling sources in continuous production lasting more than 24 hours.
● The main unit is cooled by air.
● The casing features electrostatic powder coating, offering excellent corrosion resistance.
Typical applications of the refrigeration, heating, and temperature control system
Dynamic constant-temperature control of high-pressure reactor cooling and heating sources, dynamic constant-temperature control of double-layer glass reactor cooling and heating sources, constant-temperature control of microchannel reactors’ cooling and heating sources, small-scale constant-temperature control systems, temperature control for evaporation and condensation systems, low- and high-temperature aging tests for materials, combined chemical cooling and heating source constant-temperature control, semiconductor equipment cooling and heating, and constant-temperature control for refrigeration and heating in vacuum chambers.
-80℃～200℃ Ultra-low and High-temperature Integrated Machine - Technical Parameters
Model
PLYY-80-20
PLYY-80-30
PLYY-80-50
PLYY-80-100
PLYY-80-150
Temperature Range
-80℃ to 200℃
Control System
PID Adaptive Control Algorithm, PLC Programmable Controller
Temperature Control Mode
Material Temperature Control and Equipment Outlet Temperature Control Modes—Freely Selectable
Program Editing
PLC Control Allows Programming of 5 Programs, Each Program Can Be Composed of Up to 40 Steps
Communication Protocol
MODBUS RTU Protocol, RS485 Interface
External temperature feedback
PT100, 4–20mA, or communication-based setpoint (PT100 by default)
Temperature feedback
Three-point temperatures of the device’s heat transfer medium: inlet temperature, outlet temperature, and reactor material temperature (external temperature sensors)
Temperature control accuracy of the heat transfer fluid
±0.5℃
Material temperature control accuracy
±1℃
Heating power kW
2.5
3.5
5.5
7.5
10
Cooling capacity
KW200℃
2.5
3.5
5.5
7.5
10
100℃
2.5
3.5
5.5
7.5
10
0℃
2.5
3.5
5.5
7.5
10
-40℃
1.8
2.6
3.3
5.8
6.4
-60℃
1
1.4
1.6
3
3.5
-75℃
0.3
0.42
0.7
1.3
1.5
Circulating pump
Maximum flow pressure
20 L/min
2 bar35 L/min
2 bar35 L/min
2 bar50 L/min
2 bar60 L/min
2.5 barCompressor
Compressors from brands such as Emerson Copeland, Tecumseh, and Doosan
Expansion valve
Danfoss/Emerson thermostatic expansion valve + Emerson electronic expansion valve
Evaporator
Plate Heat Exchanger
Operation Panel
PLC Control, 7-inch Color Touch Screen, Temperature Curve Display and Recording
Safety Protection
Features self-diagnosis capability; compressor overload protection; high-pressure pressure switch, overload relay, thermal protection device, and other multiple safety features.
Closed Loop
The entire system is fully sealed. At high temperatures, there will be no oil mist; at low temperatures, it will not absorb moisture from the air. During operation, the system will not experience pressure increases due to high temperatures, and at low temperatures, the heat transfer medium will be automatically replenished.
Refrigerant
R-404A/R23/R14 Mixed Refrigerant
Power Supply
380V 50HZ / 460V 60HZ
Enclosure Material
Cold-rolled Steel with Powder Coating or SUS304 Enclosure
Optional
Explosion-proof Models ExdIIBT4/ ExdIICT4
Application Industries
1. Pharmaceutical: Processes requiring temperature control, such as synthesis, hydrolysis, esterification, and etherification.
2. Chemical Industry: Distillation and purification, rubber grinding, low-temperature grinding, and chemical synthesis.
3. Metal Processing: Low-temperature assembly and low-temperature quenching.
4. Food: Ultra-low-temperature processing and storage of foods such as tuna.
5. Semiconductor Electronics: Environmental testing of components and simulated testing of electronic devices.
6. Aerospace: Thermal sink experiments, environmental simulation tests for components, and evaporative cooling environment simulation tests.
Working Principle of Chiller Heater Temperature Control System
Detailed Images of Some Components
Control System Display Screen, Brand Compressor, Condensing Fan, Plate Heat Exchanger, Expansion Valve, Drying Filter, etc.
Diagram of the Integrated High- and Low-Temperature Cycling Machine
Product real-shot photos
