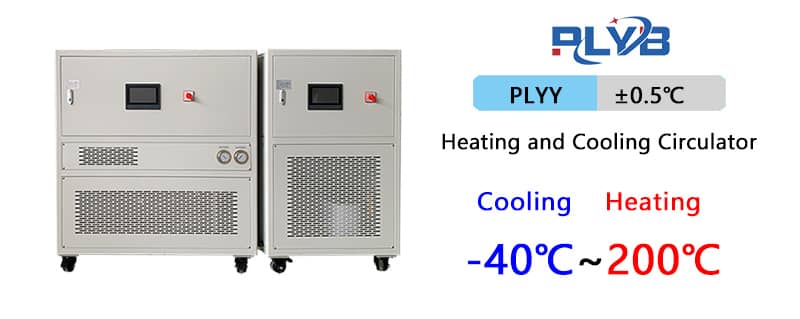

-40℃~200℃ heating and cooling circulator
- Product Description
-
Introduce of the heating and cooling circulator
The high- and low-temperature circulation device is also known as the ‘heating and cooling circulator,’ ‘cold-and-hot integrated unit,’ or ‘heating and cooling circulator.’When the temperature of glass reactors, reactors, rotary evaporators, extraction equipment, and other devices paired with the high- and low-temperature integrated unit needs to be rapidly increased or decreased, this equipment can quickly bring them to the set temperature. The equipment can switch between heating and cooling modes swiftly, and it uses the same medium—thermal oil—thus completely overcoming the previous drawback of requiring two separate instruments for heating and cooling. The entire liquid circulation system of the high- and low-temperature circulating unit is sealed and equipped with an expansion tank. The expansion tank and the liquid circulation system are thermally isolated and do not participate in the liquid circulation; they are merely mechanically connected. Regardless of whether the liquid circulation operates at high or low temperatures, the medium in the expansion tank remains below 60 degrees.
Product Model: PLYY-40-50
Temperature control range: -40 to 200℃
Typical applications of cooling and heating temperature control systems
Dynamic constant-temperature control of high-pressure reactor cooling and heating sources, dynamic constant-temperature control of double-layer glass reactor cooling and heating sources, constant-temperature control of microchannel reactors’ cooling and heating sources, small-scale constant-temperature control systems, temperature control for steam saturation systems, low- and high-temperature aging tests for materials, combined chemical cooling and heating source constant-temperature control, cooling and heating for semiconductor equipment, and constant-temperature control for refrigeration and heating in vacuum chambers.
-40℃～200℃ heating and cooling circulator - Technical Parameters
Model
PLYY-40-20
PLYY-40-30
PLYY-40-50
PLYY-40-100
PLYY-40-150
PLYY-40-200
Temperature Range
-40℃～200℃
Control System
PID Adaptive Control Algorithm, PLC Programmable Controller
Temperature Control Mode
Material Temperature Control and Equipment Outlet Temperature Control Modes—freely selectable
Program Editing
PLC control allows programming of 5 sequences, each sequence can be programmed with up to 40 steps
Communication Protocol
MODBUS RTU Protocol RS485 Interface
External Temperature Feedback
PT100 or 4–20mA or Communication Input (PT100 by default)
Temperature Feedback
Device Heat Transfer Medium: Inlet Temperature, Outlet Temperature, and Reactor Material Temperature (three-point temperature with external temperature sensors)
Thermal fluid temperature control accuracy
±0.5℃
Material temperature control accuracy
±1℃
Heating power kW
2.5
3.5
5.5
7.5
10
15
Manufacturing
Cooling
Capacity
kW200℃
2.5
3.5
5.5
7.5
10
15
100℃
2.5
3.5
5.5
7.5
10
15
20℃
2.5
3.5
5.5
7.5
10
15
0℃
1.8
3
5
7
10
15
-20℃
0.85
1.5
2.9
4.2
6
11
-40℃
0.25
0.45
0.9
1.5
2
3.8
Circulating pump flow rate and maximum pressure
20 L/min
2 bar35 L/min
2 bar35 L/min
2 bar50 L/min
2 bar75 L/min
2.5 bar110 L/min
2.5 barCompressor
Compressors from brands such as Emerson Copeland, Tecumseh, and Doosan
Expansion valve
Danfoss/Emerson thermostatic expansion valves
Evaporator
Plate heat exchanger
Operation Panel
PLC-controlled 7-inch color touch screen, with temperature curve display and recording
Safety Protection
Features self-diagnosis capability; compressor overload protection; high-pressure switch, overload relay, thermal protection device, and other multiple safety features.
Sealed Circulation
The entire system is fully sealed. At high temperatures, there will be no oil mist; at low temperatures, it won't absorb moisture from the air. During operation, the system won't experience pressure increases due to high temperatures, and at low temperatures, the heat transfer medium will automatically be replenished.
Refrigerant
R-404A/R507C
Power Supply
380V 50HZ / 460V 60HZ
Enclosure Material
Cold-rolled steel with plastic coating or SUS304 enclosure
Optional
Explosion-proof models ExdIIBT4/ ExdIICT4
Application Industries
1. Pharmaceutical: Processes requiring temperature control, such as synthesis, hydrolysis, esterification, and etherification.
2. Chemical: Distillation and purification, rubber grinding, cryogenic grinding, and chemical synthesis.
3. Metal processing: Cryogenic assembly, cryogenic quenching.
4. Food: Ultra-low-temperature processing and storage of foods such as tuna.
5. Semiconductor Electronics: Environmental Testing of Components, Simulated Testing of Electronic Components.
6. Aerospace: Thermal Sink Testing, Environmental Simulation Testing of Components, Evaporative Cooling Environmental Simulation Testing.
