Explosion-proof heating and cooling circulator

Introduction to explosion-proofheating and cooling circulator

The explosion-proof heating and cooling circulator is an intelligent temperature‑control device specifically designed for flammable and explosive environments. It combines heating, cooling, and circulating temperature‑control functions in a single system and is widely used in industries such as chemical processing, petroleum, pharmaceuticals, new materials, and laboratories. Building on the conventional high‑low temperature integrated unit, this equipment features an optimized explosion‑proof design, enabling safe and stable operation under complex and hazardous conditions, making it one of the key devices in the industrial temperature‑control field.



The explosion-proof heating and cooling circulator achieves precise temperature control of target equipment (such as reaction vessels, storage tanks, etc.) through the coordinated operation of its built-in compressor-based refrigeration system and electric heating system. Its core components typically include explosion-proof motors, explosion-proof electrical control cabinets, and explosion-proof sensors; the entire unit complies with relevant explosion-proof standards, effectively preventing safety incidents caused by electrical sparks. Additionally, the equipment is often constructed from high-quality stainless steel, offering excellent corrosion resistance and making it suitable for a wide range of chemical environments.



Regarding product features, the explosion-proof heating and cooling circulator boasts a wide temperature control range, high precision, and rapid response. The equipment can be freely adjusted between low temperatures (e.g., −80°C) and high temperatures (e.g., 200°C), meeting diverse process requirements for temperature control. Its intelligent temperature control system supports PID regulation, ensuring stable temperature maintenance and minimizing temperature fluctuations. Moreover, the integrated design results in a compact structure with a small footprint, making installation and maintenance more convenient.

-20℃～200℃ Explosion-proof heating and cooling circulator - Technical Parameters

Application Scenarios for Explosion-Proof heating and cooling circulator Coupled with Double-Glass Reactors

In terms of application areas, explosion-proof high- and low-temperature integrated units can be used in scenarios such as reactor temperature control, fine chemical synthesis, production of pharmaceutical intermediates, and testing of new energy materials. For example, during chemical reactions, precise temperature control can enhance reaction efficiency and product quality; in the pharmaceutical industry, it ensures stable synthesis of drugs under specific temperature conditions; and in scientific research experiments, it provides reliable temperature assurance for complex procedures.

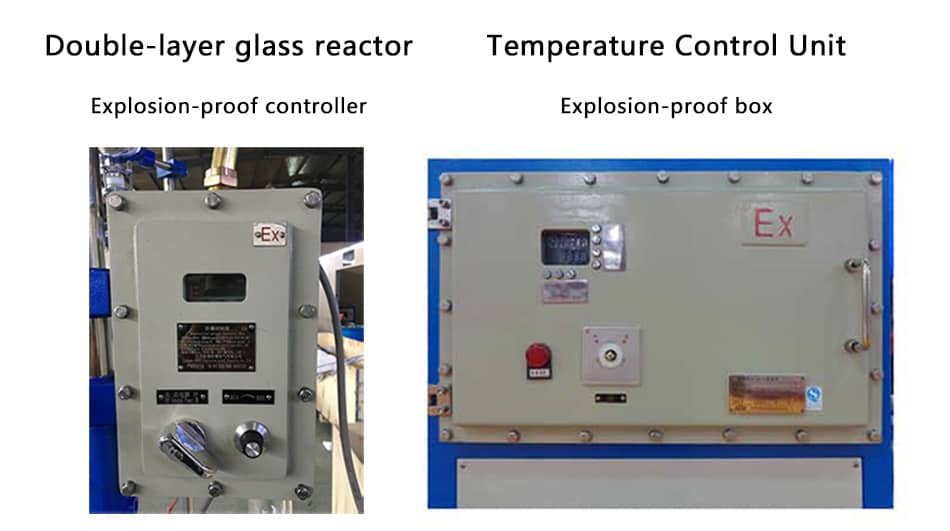

Explosion-proof heating and cooling circulator – Detail Images of Some Accessories

Explosion-proof enclosures, control system displays, branded explosion-proof compressors, explosion-proof condenser fans, plate heat exchangers, expansion valves, dryer filters, etc.;

Safety is one of the most prominent features of explosion-proof high- and low-temperature integrated units. The equipment typically comes equipped with multiple safety protection functions, including over-temperature protection, over-pressure protection, low-fluid-level alarms, and overcurrent protection, ensuring timely shutdown and alarm notifications in abnormal conditions. Meanwhile, the explosion-proof design covers the electrical system and key components, significantly enhancing the overall operational safety level, making it particularly suitable for petrochemical and hazardous-material production environments.

External Structural Diagram of the heating and cooling circulator

Real-life photos of the explosion-proof heating and cooling circulator

When selecting an explosion-proof heating and cooling circulator, users should pay close attention to the equipment’s explosion‑proof rating, temperature control range, cooling capacity, heating power, and control system performance. At the same time, it is essential to choose a manufacturer with the relevant certifications to ensure that the equipment complies with national or industry‑specific explosion‑proof standards and benefits from a comprehensive after‑sales service system. Puli Technology specializes in manufacturing explosion‑proof heating and cooling circulator and stainless‑steel models, all of which come with complete explosion‑proof certificates, reliable quality, and outstanding after‑sales support—trusting us is the right choice.



With its high safety, high precision, and high level of integration, the explosion-proof heating and cooling circulator is gradually becoming the preferred choice for temperature control equipment in hazardous operating environments. As industrial safety standards continue to rise and smart manufacturing develops, this device will enjoy even broader application prospects in the future market.
