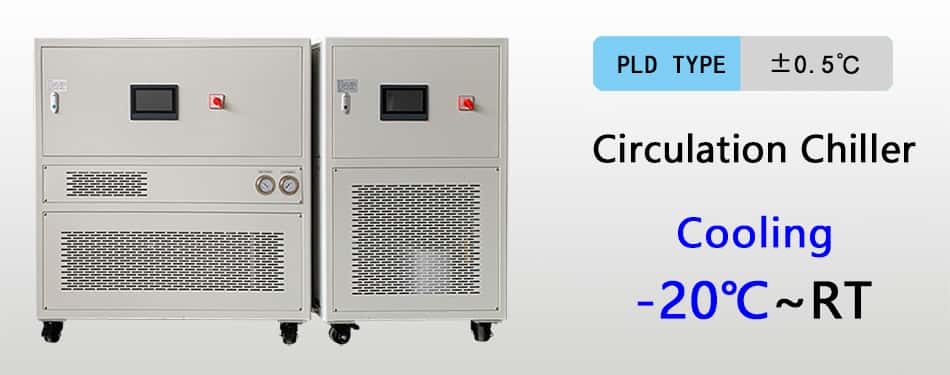

-20℃~RT low-temperature refrigeration circulator

Overview of Low-Temperature Refrigeration Circulators

Product Model: PLD-20/50

Temperature Control Range: -20℃ ~ RT Ambient Temperature

A low-temperature refrigeration circulator is a circulating device capable of precisely controlling low-temperature environments. It can cool, maintain constant temperature, and circulate liquid media, providing stable temperature support for various applications requiring low-temperature conditions.

Core Functions

Precise Temperature Control:PID control accuracy, digital temperature display, adjustment resolution of 0.1 degree, PT100 temperature sensor;Compressor deviation can be set to control the compressor’s start and stop;Environmental temperature monitoring function to prevent the system from operating in excessively high ambient temperatures.

Media Circulation:Equipped with a built-in circulation pump, it can deliver cooled media to external devices, ensuring a continuous supply of low-temperature environments and maintaining temperature consistency throughout experimental or production processes.

Main Components

Refrigeration System: Typically employs a compression refrigeration cycle, paired with components such as an evaporator and a condenser, to rapidly reduce the temperature of the medium.

Control System: Equipped with an operation panel (such as the button-type controller shown in the figure), it allows you to set the target temperature, monitor the real-time temperature, and check the device’s operating status via indicator lights.

Circulation System: Includes circulation pumps, pipelines, and other components to ensure continuous flow of the medium between the equipment and external loads.

Insulation Structure: The equipment casing features excellent thermal insulation performance, reducing heat exchange and improving temperature control accuracy and energy efficiency.

Typical Applications of Refrigeration and Heating Temperature Control Systems

Dynamic constant-temperature control of high-pressure reactor cooling and heating sources, dynamic constant-temperature control of double-layer glass reactor cooling and heating sources, constant-temperature control of microchannel reactors’ cooling and heating sources, small-scale constant-temperature control systems, temperature control for steam saturation systems, low- and high-temperature aging tests for materials, combined chemical cooling and heating source constant-temperature control, semiconductor equipment cooling and heating, and constant-temperature control for refrigeration and heating in vacuum chambers.

-20℃～RT Ambient Temperature, Low-Temperature Chiller - Technical Parameters

Application Industries

1. Pharmaceutical: Processes requiring temperature control, such as synthesis, hydrolysis, esterification, and etherification.

2. Chemical Industry: Distillation and purification, rubber grinding, low-temperature grinding, and chemical synthesis.

3. Metal Processing: Low-temperature assembly and low-temperature quenching.

4. Food: Ultra-low-temperature processing and storage of foods such as tuna.

5. Semiconductor Electronics: Environmental testing of components and simulated testing of electronic devices.

6. Aerospace: Thermal sink experiments, environmental simulation tests for components, and evaporative cooling environment simulation tests.

Low-temperature refrigeration circulator – detailed images of some accessories

Control system display screen, branded compressor, condensing fan, plate heat exchanger, expansion valve, drying filter, etc.

External Structural Diagram of Low-Temperature Refrigeration Circulator

Product real-shot photos
