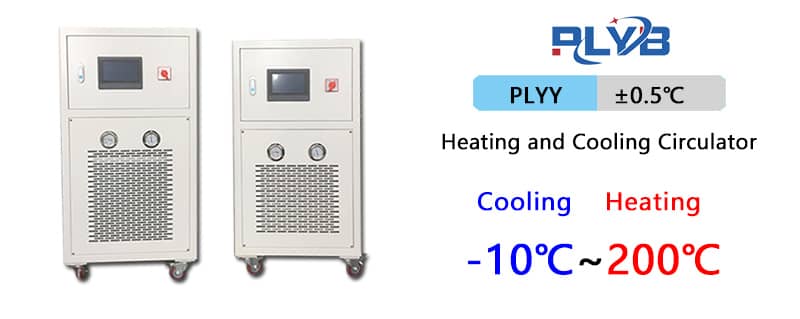

-10℃~200℃ high and low temperature all-in-one machine
- Product Description
-
Introduce
High and low temperature integrated machine is also called high and low temperature circulator, heating and cooling circulation integrated machine, high and low temperature circulation integrated machine, simply put, it is a device that integrates the two functions of heating and cooling in one system, and specially provides a constant cold source and heat source for the reactor jacket. It drives the heat transfer medium (usually thermal oil or pure water) by pump from the tank with the built-in heater to the temperature-controlled jacketed reactor, and from the temperature-controlled jacketed equipment back to the heater tank. The high and low temperature control system adjusts the power of the heater or compressor and accurately adjusts the temperature of the hot fluid according to the temperature sensor PT100 measured by the temperature sensor PT100 or the internal temperature of the temperature control equipment, so as to achieve the temperature required by the temperature control equipment with an accuracy of ±0.5℃.
Advantages: High and low temperature all-in-one machine, adopting fully enclosed pipeline design, using plate heat exchanger, reducing the demand for heat transfer liquid, improving the heat utilization rate of the system, and achieving rapid rise and fall temperature. The thermal conductive medium is in a closed system, with an expansion vessel, the thermal conductive medium in the expansion vessel does not participate in the circulation, whether it is high temperature or low temperature, the expansion tank temperature is normal temperature to 60 degrees, which can reduce the risk of the thermal conductive medium absorbing moisture and volatilization during operation.
Typical applications of refrigeration, heating and temperature control systems
Dynamic constant temperature control of high-pressure reactor cold and heat source, dynamic constant temperature control of cold and heat source of double-layer glass reactor, constant temperature control of cold and heat source of microchannel reactor, small constant temperature control system, temperature control of steaming and saturation system, low-temperature and high-temperature aging test of materials, constant temperature control of combined chemical cold source heat source, cooling and heating of semiconductor equipment, constant temperature control of vacuum chamber refrigeration and heating.
-10℃~200℃ high and low temperature all-in-one machine - technical parameters
Model
PLYY-10-20
PLYY-10-30
PLYY-10-50
PLYY-10-100
PLYY-10-150
PLYY-10-200
Temperature range
-10℃～200℃
Control system
PID adaptive control algorithm, PLC editable controller
Temperature control mode selection
Material temperature control and equipment outlet temperature control mode can be freely selected
Program editing
PLC control can program 5 programs, each program can program 40 steps
Communication protocols
MODBUS RTU protocol RS485 interface
External access temperature feedback
PT100 or 4~20mA or communication given (default PT100)
Temperature feedback
Equipment thermal conductive medium inlet temperature, outlet temperature, reactor material temperature (external temperature sensor) three point temperature
Thermal fluid temperature control accuracy
±0.5℃
Material temperature control accuracy
±1℃
Heating power kW
2.5
3.5
5.5
7.5
10
15
Cooling capacity kW
200℃
2.5
3.5
5.5
7.5
10
15
20℃
2.5
3.5
5.5
7.5
10
15
-5℃
1.5
2.1
3.3
4.2
6
9
Flow rate L/min Max
20
35
35
50
50
75
Pressure bar Max
2
2
2
2
2
2.5
Compressor
Emerson Copelen, Taikang, Duling and other brand compressors
Expansion valve
Danfoss/Emerson thermal expansion valves
Evaporator
Plate heat exchanger
Operation panel
PLC control 7 inch color touch screen, temperature curve display and recording
Safety
With self-diagnosis function; freezer overload protection; High voltage pressure switch, overload relay, thermal protection device and other safety and security functions.
Closed circulation system
The whole system is a fully enclosed system, there will be no oil mist at high temperature, low temperature does not absorb water in the air, the system will not increase the pressure due to high temperature during operation, and the low temperature will automatically replenish the thermal conductive medium.
Refrigerant
R-404A
Power supply
380V 50HZ / 460V 60HZ
Housing material
Cold plate spray molding or SUS304 housing
Optional
ExdIIBT4
Application industry
1. Pharmaceutical: synthesis, hydrolysis, esterification, etherification and other processes that require temperature control.
2. Chemical: distillation and purification, rubber crushing, low-temperature grinding, chemical synthesis.
3. Metal treatment: low-temperature assembly, low-temperature fire.
4. Food: Tuna and other ultra-low temperature food processing and storage.
5. Semiconductor electronics: component environmental testing, electronic component simulation test.
6. Aerospace: thermal sink test, parts environment simulation test, evaporative cold environment simulation test.
The working principle of the high and low temperature all-in-one machine
High and low temperature all-in-one machine - details pictures of some accessories
Control system display, brand compressor, condensing fan, plate heat exchanger, expansion valve, drying filter, etc
Shape and structure diagram of the high and low temperature circulation integrated machine
Real photos of the product
